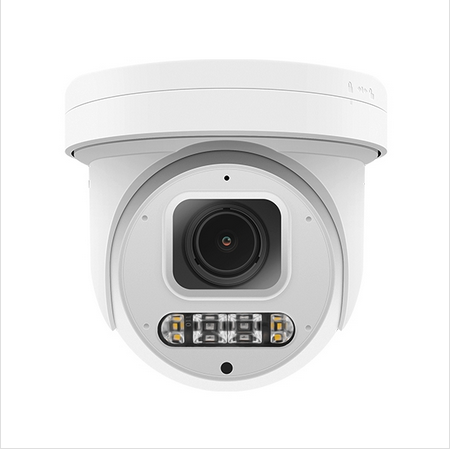

RS-M608FIRC-5X-HS 4K 8MP Human and Vehicle Detection IR & Warm Light IP PTZ Dome Camera
RS-M608FIRC-5X-HS 4K 8MP Human and Vehicle Detection IR & Warm Light IP PTZ Dome Camera
Features:
- 1/2.8" Sony CMOS sensor
- 4K resolution 3840 x 2160P
- Low illumination 0.01Lux
- 5x optical zoom lens
- Smart Human and Vehicle Detection Alarm
- Built-in Mic and speaker, two-way audio
- Siren and voice alarm, flash alarm
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
- D-WDR, Flip, Defogging
- Multiply Style OSD Overlay, Motion Detection, Privacy Mask
- RTSP and Onvif 17.06 compatible with many third-party NVR
- H.264/H.265 three-stream media server
- Easy-to-use P2P Cloud service
- Support user authentication, video data encryption
- Support Alarm Snapshot to Email and FTP
- Multiply WEB browser IE,Firefox,Chrome,Edge,Safari
- Free PC Client, Mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af 48v PoE
- Lightning protection 4000V
- Strong metal water-proof housing, IP66
- 4 pcs Array IR and warm-light Led
- IR distance 40 meters, warm-light distance 30 meters
- Reset key, Micro-SD slot (Max. 512G)
Technical Specifications:
|
Model |
YC- M608FIRC-5X-HS |
|
Camera |
|
|
Image Sensor |
1/2.8" Sony CMOS |
|
Effective Pixels |
8 megapixels |
|
Electronic Shutter |
AUTO, 1/10s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
Image adjust , Flip |
|
Encode |
|
|
Video Standard |
H.265+/H.265/H.264/MJPEG |
|
Video Resolution |
MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. Third stream:1080P/720P/CIF@10fps |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Two-way Audio |
Yes |
|
Smart Detection |
Smart Human and Vehicle Detection |
|
Micro-SD Slot |
Max. 512G |
|
Reset Key |
Yes |
|
IR&warm light Led |
|
|
Led |
4pcs array IR&warm Led |
|
Distance |
40 m (IR), 30 m (warm light) |
|
Lens |
|
|
Focal length |
2.7-13.5 mm AF |
|
Zoom |
5x optical zoom |
|
PTZ |
|
|
Pan/Tilt Range |
Pan: 0° ~ 280°; Tilt: 0° ~ 90° |
|
Preset Point |
10 |
|
Control Speed |
Pan: 15° /s; Tilt: 15° /s |
|
Guard Position |
Support |
|
Power-off Recovery |
Support |
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc. |
|
P2P |
Yes |
|
Web |
IE, Firefox, Chrome, Edge, Safari |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, PoE 48V in |
|
Power Supply |
12 VDC ± 10% 2A |
|
Power Consumption |
< 15 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
|
Size |
Φ120(mm)×110(mm) |
|
Weight |
0.68kg |
