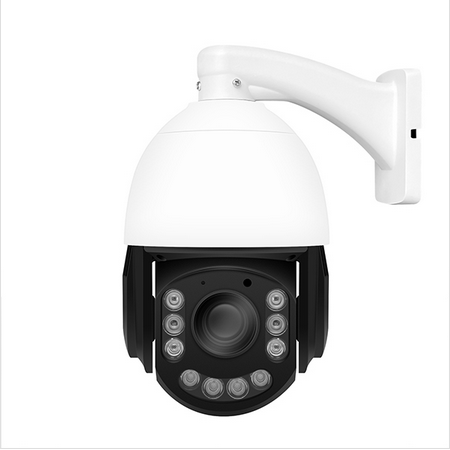

RS-M608FIR-HS20X-Y 8MP 4K 5 inch Auto Tracking Human Body and Vehicle Detection IR IP PTZ Camera
RS-M608FIR-HS20X-Y 8MP 4K 5 inch Auto Tracking Human Body and Vehicle Detection IR IP PTZ Camera
Features:
- 1/2.8" So-ny CMOS sensor
- 4K resolution 3840 x 2160P
- Low illumination 0.01Lux
- 20x optical zoom
- Smart Human body and Vehicle Detection
- Smart Human auto Tracking
- Built-in Microphone
- with SD card slot , support up to 256GB Micro SD card
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
- D-WDR, Flip, Defogging
- Multiply Style OSD Overlay, Motion Detection, Privacy Mask
- RTSP and On-vif 17.06 compatible with many third-party NVR
- H.264/H.265 dual-stream media server
- Easy-to-use P2P Cloud service
- Support user authentication, video data encryption
- Support Alarm Snapshot to Email and FTP
- Multiply WEB browser IE,Firefox,Chrome,Edge,Safari
- Free PC Client, Mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af 48v PoE
- Lightning protection 4000V
- Strong metal water-proof housing, IP66
- 10 pcs Array IR Led
- IR distance 100-120 meters
Specifications:
|
Model |
M608FIR-HS20X-Y |
|
Camera |
|
|
Image Sensor |
1/2.8" So-ny CMOS |
|
Effective Pixels |
8MP@3840*2160 |
|
Electronic Shutter |
AUTO, 1/10s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
Image adjust , Flip |
|
Encode |
|
|
Video Standard |
H.264/H.265/Mjpeg |
|
Video Resolution |
MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Mic |
Built-in Microphone |
|
Smart Detection |
Smart Human body and Vehicle Detection,support Auto tracking |
|
IR Led |
|
|
IR Led |
10pcs array IR Leds,support remotely turn on/off IR LEDs |
|
IR Distance |
100-120 M |
|
Lens |
|
|
Focal length |
4.7-94mm |
|
IRIS |
F1.6-3.5 |
|
View angle |
64 - 2.9 ° |
|
Zoom |
20x optical zoom |
|
Functions |
|
|
High power PoE, built in Microphone ,with SD card slot , support up to 256GB Micro SD card |
|
|
PTZ |
|
|
Pan/Tilt Range |
Pan: 0° ~ 360°; Tilt: -5° ~ 90° |
|
Preset Point |
256 |
|
Control Speed |
Pan: 0.5° ~25° /s; Tilt: 0.5° ~25° /s |
|
A-B Scanning |
|
|
Auto Cruising |
Support 8 groups patrol, Max. 16 presets in group |
|
Power on Action |
Preset/Scan/Cruise |
|
Cruise tracking |
presets Cruise and Auto tracking can working at the same time |
|
Power-off Recovery |
Support |
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc. |
|
P2P |
Yes |
|
Web |
IE, Firefox, Chrome, Edge, Safari |
|
Media |
CMS, Android, IOS |
|
ON-VIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, PoE 48V in |
|
Power Supply |
12 VDC ± 10% 2A |
|
Power Consumption |
< 22 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
