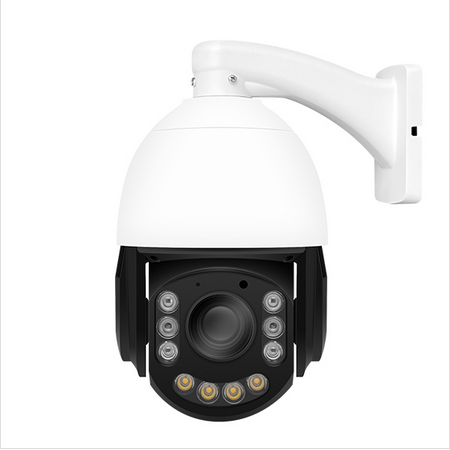

RS-M608FIRC-HS20X-Y 4K 8MP 20X Dual Light Auto Tracking POE IP PTZ Dome Camera
Features:
- 1/2.8" Sony low-light CMOS sensor
- 4K 8MP resolution3840 x 2160 output
- low illumination 0.01Lux
- 20x optical zoom lens
- Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
- D-WDR, Mirror, flip, Defogging
- Multiply Style OSD Overlay,Motion Detection, Privacy Mask
- RTSP and Onvif 17.06 compatible with many third-party NVR
- H.264/H.265 dual-stream media server
- Easy-to-use P2P Cloud service
- Support user authentication, video data encryption
- Support Alarm Snapshot to Email and FTP
- Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
- Lightning protection 4000V
- Strong water-proof housing IP66
- 4 PCS warm light & IR dual light, light distance 40-50 meters
- 6 PCS Array IR LEDs, IR distance 80-100 meters
- Support Human auto-tracking
- Human body detection, Vehicle detection
- Two-way Audio, SD card slot (Max. 256GB)
Specification:
|
Model |
M608FIRC-HS20X-Y |
|
Camera |
|
|
Image Sensor |
1/2.8" Sony CMOS |
|
Effective Pixels |
8 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC,Motion Detection,Privacy Mask,Flip,OSD overlay |
|
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream: 20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
Built-in Mic |
Yes |
|
LEDs |
|
|
LEDs |
4 PCS 4 PCS warm light & IR dual light 6 PCS Array IR LEDs |
|
LEDs Distance |
Dual light distance 40-50 meters IR distance 80-100meters |
|
Lens |
|
|
Focal length |
4.7-94mm |
|
IRIS |
F1.6-3.5 |
|
View angle |
64 - 2.9 ° |
|
Zoom |
20x optical zoom |
|
Optional Function |
|
|
PoE, human auto-tracking, Two-way Audio, SD card slot (Max. 256GB) |
|
|
PTZ |
|
|
Pan/Tilt Range |
Pan: 0° ~ 360°; Tilt: -5° ~ 90° |
|
Preset Point |
128 |
|
Control Speed |
Pan: 0.5° ~30° /s; Tilt: 0.5° ~30° /s |
|
A-B Scanning |
Support |
|
Auto Cruising |
Support 8 groups |
|
Power on Action |
Preset/Scan/Cruise |
|
Power-off Recovery |
Support |
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, PoE 48V in |
|
Power Supply |
12 VDC ± 10% 2A |
|
Power Consumption |
< 20 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
|
Size |
Φ137(mm)×234(mm) |
|
Weight |
2.3kg |
