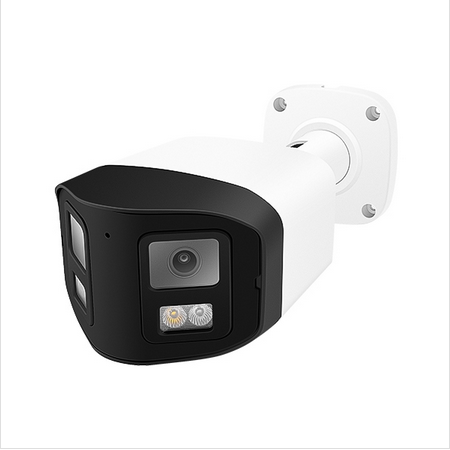

RS-W744DZ58A 4MP dual-lens dual-light Two-way Audio Human Detection IP Camera
Features:
- 1/2.9" CMOS sensor
- 4MP wide-view resolution 3840 x 1080P (32:9)
- 170 °wide-angle
- Low illumination 0.01Lux
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter,
- D-WDR, Mirror , Defogging
- Multiply Style OSD Overlay, Motion Detection, Privacy Mask
- RTSP and Onvif 17.06 compatible with many third-party NVR
- H.264/H.265 dual-stream media server
- Easy-to-use P2P Cloud service
- Support user authentication, video data encryption
- Support Alarm Snapshot to Email and FTP
- Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af PoE
- Lightning protection 4000V
- Strong water-proof housing, IP66
- 2 pcs Warm light + 2 pcs IR led distance 20-30 meters
- F1.6 3.6 mm fixed lens
- Built-in Mic and speaker two-way audio
Technical Specifications:
|
Model |
YC-W744DZ58A |
|
Camera |
|
|
Image Sensor |
1/2.9" GC2063 CMOS x2 |
|
Effective Pixels |
4 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
|
Encode |
|
|
Video Standard |
H.264/H.265/H.265+ |
|
Video Resolution |
MainStream:20fps@3840x1080P Sub stream: 20fps@1280x360 |
|
Video Bitrates |
512Kbps - 8Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes Two-way audio |
|
Smart Detection |
Human Detection |
|
Led |
|
|
Led |
2pcs warm-light Led + 2pcs IR Led |
|
Distance |
20-30 M |
|
Lens |
|
|
Focal length |
F1.6 3.6 mm fixed lens |
|
FOV |
170° |
|
Other Function |
|
|
PoE，Reset, SD-Slot |
|
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 10 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
