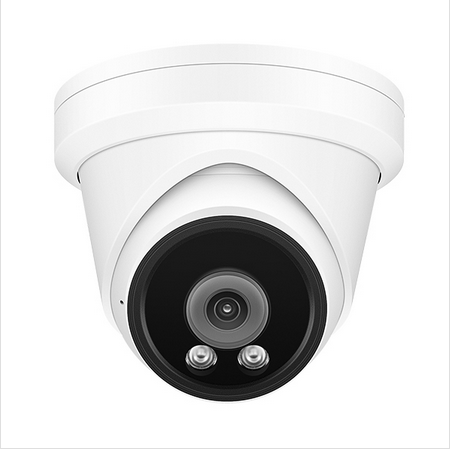

RS-W716AHBB97WA Wide Angle 6MP Human & Vehicle Detection IR Dome IP Camera
Please contact for more information.
Features:
- 1/2.8" Sony CMOS sensor
- 6MP HD resolution 3072 x 2048 output
- Ultra low illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT, Privacy Mask, Mirror
- D-WDR, Motion Detection, Human Detection, Vehicle Detection
- RTSP and Onvif 17.06 compatible
- H.265/H.264 / MJPEG dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af PoE
- Lightning protection 4000V
- Strong water-proof housing, IP67
- 2 pcs Array IR Led, IR distance 30 meters
- HD 2.1 mm fixed Lens
- CE, FCC, RoHS, ISO9001 certification
Technical Specifications:
|
Model |
RS-W716AHBB97WA |
|
Camera |
|
|
1/2.8" Sony CMOS |
|
|
Effective Pixels |
3072(H)×2048 (V) |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
AGC/BLC/HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
|
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream: Sub stream: 30fps@D1/VGA/360P/CIF, etc. |
|
Video Bitrates |
64Kbps - 8Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Built-in Mic |
Optional |
|
Smart Event |
Human Detection Vehicle Detection |
|
IR Led |
|
|
IR Led |
2pcs Array IR Leds |
|
IR Distance |
20-30 M |
|
Lens |
|
|
Focal length |
2.1mm fixed |
|
FOV |
Horizontal: 135° ; Vertical: 75° ; Diagonal: 156° |
|
Network Services |
|
|
Protocol |
HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox 32bit ESR, Chrome, etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps |
|
Power Supply |
12 VDC ± 10% |
|
POE |
IEEE 802.3at |
|
Power Consumption |
< 5 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
|
Ingress Protection |
IP67 |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
