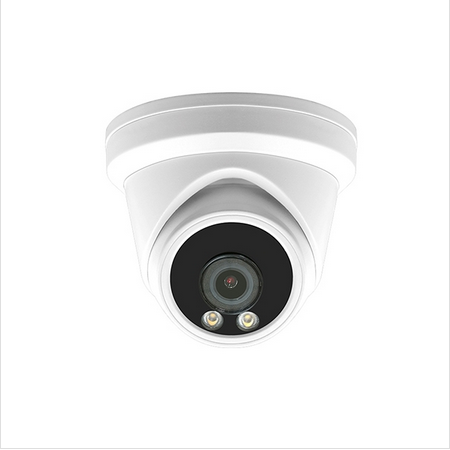

RS-W716CB97A 5MP/6MP Color View 7/24 hours Colorful View POE Waterproof Dome Turret IP Camera
RS-W716CB97A 5MP/6MP Color View 7/24 hours Colorful View POE Waterproof Dome Turret IP Camera
Features:
- 1/2.8" Sony IMX335 CMOS sensor
- Full HD resolution 2592 x 1944P
- Ultra low illumination 0.001Lux
- Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Privacy Mask, Mirror
- RTSP and On-vif 17.06 compatible
- H.265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- Internal Microphone, reset button optional
- Lightning protection 4000V
- RJ45 100mbps network port, IEEE802.3af PoE
- Strong water-proof housing, IP67
- 2PCS Soft & Warm Supplemental Light,Light distance:25-30M
- HD 2.8mm F1.0 true starlight lens
Technical Specifications:
|
Model |
RS-W716CB97A |
|
Camera |
|
|
Image Sensor |
1/2.8" Sony CMOS |
|
Effective Pixels |
2592(H)×1944 (V) |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
AGC/BLC/HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
|
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream: Sub stream: 30fps@D1/VGA/360P/CIF, etc. |
|
Video Bitrates |
64Kbps - 8Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a/AAC |
|
Built-in Mic |
Yes |
|
Smart Event |
Human Detection |
|
IR Led |
|
|
IR Led |
2PCS Soft & Warm Supplemental Light |
|
IR Distance |
20-30 M |
|
Lens |
|
|
Focal length |
HD 2.8mm F1.0 true starlight lens |
|
Optional Function |
|
|
Audio, etc. |
|
|
Network Services |
|
|
Protocol |
HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox 32bit ESR, etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE |
|
Power Supply |
12 VDC ± 10% |
|
POE |
IEEE802.3af PoE |
|
Power Consumption |
< 5 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
