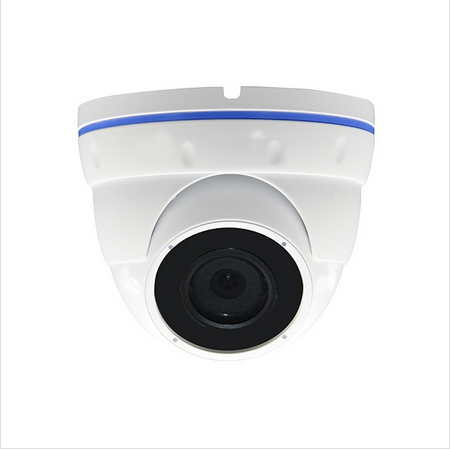

RS-W555GAHBB95XA 5MP H.264 & H.265 Motorized vandal-proof IR Dome IP Camera
Features:
- 1/2.8" Sony IMX335 Low light CMOS sensor
- Low illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Privacy Mask, Mirror, Flip
- RTSP and Onvif 17.06 compatible
- H.265/H.264 dual-stream media server, Max.5MP HD output
- Ultra low bitrate and high image quality
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- Optional customization Lens/Audio/POE, etc.
- Lightning protection 4000V
- Strong Metal housing, IP65
- 18PCS 14μ SMD Array IR LEDs, IR distance 20-25 meters
- HD 2.8 – 12 mm AF Motorized Lens
Technical Specifications
|
Model |
RS-W555GAHBB95XA |
|
Camera |
|
|
Image Sensor |
1/2.8" Sony IMX335 CMOS |
|
Effective Pixels |
2592(H)×1944 (V) |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto |
|
Other |
AGC,2/3 DNR,Motion Detection,privacy Mask,Mirror,Flip |
|
Encode |
|
|
Embedded Solution |
Mstar MSC316DM |
|
Video Standard |
H.265/H.264 |
|
Video Resolution |
MainStream:15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P |
|
Video Bitrates |
512Kbps - 6Mbps, VBR/CBR |
|
IR Led |
|
|
IR Led |
18 pcs new array IR Leds |
|
IR Distance |
20-25 M |
|
Lens |
|
|
Focal length |
2.8 – 12 mm AF Motorizes lens |
|
Focus |
4X optical zoom |
|
Optional Function |
|
|
POE, Audio, etc. |
|
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox, etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 5 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
