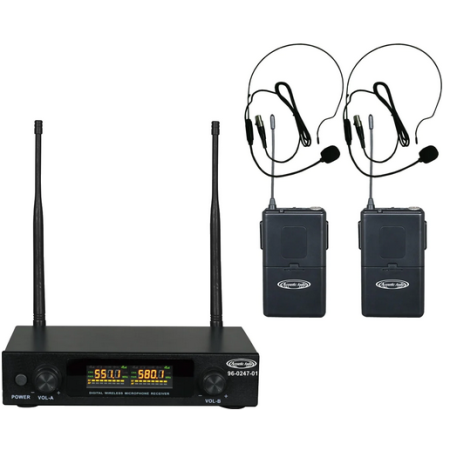

96-0247-01 Compact UHF Professional Wireless Microphone Systems - 2*Wireless Headsets

• Compact UHF Wireless Microphone System — Works at 550~865 MHz fixed frequency with strong anti-interference ability.
• High Signal/Noise Ratio Performance — Broad Frequency Response Range, low distortion. Features dual antennas to maximize wireless signal strength and increase the signal distance. Offer strong, stable and durable wireless signal.
• Dual Channel Wireless Headset — 2 unidirectional headset delivers clear and loud high fidelity sound. Ideal for church, outdoor wedding, family entertainment, small DJ stage, birthday party, conference, classrooms, small karaoke night, events etc.
• Operating Range: up to 150 Ft within line of sight.
• What You Get: 1 x Wireless Headset System, 2 x Headset (Using 2 AA batteries each, batteries are INCLUDED), 1 x 6.35mm Audio Cable, 1 x Power Adapter, 1 x User Manual.



Compact UHF Professional Wireless Microphone System brings you an amazing party atmosphere with two wireless microphones, you can also choose our Power Amplifier or Bluetooth Speaker as an Karaoke Machine

Features System:

• Carrier Frequency Range: UHF 550MHz - 865MHz
• Stability: ± 0.0025% (10ppm)
• Ambient Temperature:-10°C ~ +55°C
• Max Deviation: ±25kHz | S/N Radio: > 90dB
• Squelch: Tone control and nose lock dual squelch
• Frequency response: 40Hz ~ 18KHz
• Operating Range: 10-50m (150 Ft)

Receiver:

• Receiving mode: Quartz Locked Controlled Fixed Frequency
• Sensitivity: -95 dB (up 12dB SINAD / at 15 kHz Deviation)
• Image Rejection: 85 dB Typical
• Spurious Rejection: 75 dB Typical
• AF Output Impedance: 2.2K Ohms
• Max. Output Level: -Balance: 0-300mV; -Unbalance: 0-200mV
• Power Supply: External DC Power Adapter 12-18V - 0.35A
• Output Connector: 2 x XLR balanced socket, 1 x TRs 6.35mm unbalanced socket



Transmitter:

• Headset: Dynamic (Clip-on)
• Antenna: Built-in
• Frequency Stability (-10°C ~ +55°C): 0.0025% (10ppm)
• Rate Deviation: 75kHz
• T.H.D at 1 KHz: less than 0.5%
• Signal/Noise Ratio: >90 dB
• Transmitter Power: ≤ 30mW
• Spurious Emission: <40 dB(with Carrier)



NOTE :
1. Please do not use the microphone facing the receiver too closely, in order to avoid noise interference.
2. Please keep the receiver away from the metal or any digital devices (such as computers, cellphones, etc.) to avoid potential sources of interference.
3. Please do not flap the microphone head with hand, or it would be damaged.
