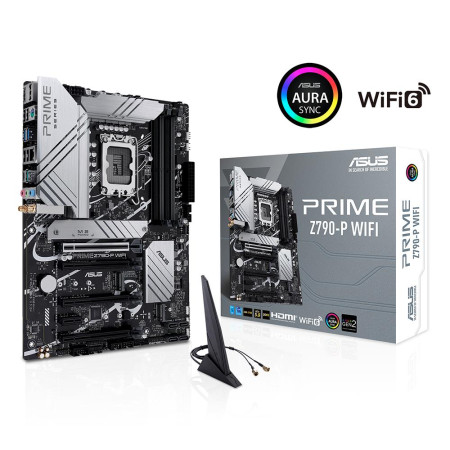

ASUS Prime Z790-P WiFi LGA 1700(Intel® 13th &12th Gen) ATX motherboard (PCIe 5.0,DDR5,14+1 Power Stages,3x M.2,WiFi 6
ASUS Prime Z790-P WiFi LGA 1700(Intel® 13th &12th Gen) ATX motherboard (PCIe 5.0,DDR5,14+1 Power Stages,3x M.2,WiFi 6,Bluetooth v5.2,2.5Gb LAN, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4(USB4) support, Arua Sync)
Main Features
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
Marketing Information
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.
General Information
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIMEZ790-PWIFI |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | PRIME Z790-P WIFI |
| Product Name | PRIME Z790-P WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen 12th Gen |
| Processor Supported | Core Pentium Gold Celeron |
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 7000 MHz 6800 MHz 6600 MHz 6400 MHz 6200 MHz 6000 MHz 5800 MHz 5600 MHz 5400 MHz 5200 MHz 5000 MHz 4800 MHz |
| Memory Standard | DDR5-7200/PC5-57600 |
| Memory Technology | DDR5 SDRAM |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 5 10 |
Video
| Onboard Video | CPU Dependent Video |
Audio
| Audio Channels | 7.1 |
Network & Communication
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
I/O Expansions
| Number of Total Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 4 |
| PCI Express Standard | PCI Express 5.0 PCI Express 4.0 PCI Express 3.0 |
Interfaces/Ports
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 4 |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Package Contents |
|
