RJ45 Cat5e Pass-Through Plug (8P 8C) - Pack of 50
Return policy

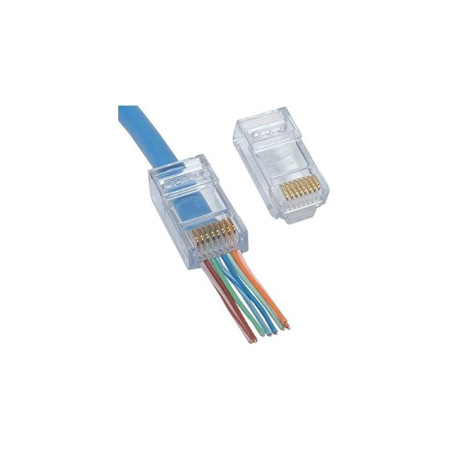

This modular RJ45 Cat5e connector is a pass through style, 8 position, 8 conductor plug. It’s typically terminated on 4 pair solid or stranded round Cat5e/Cat6 cable. It’s pass through style design makes the wire insertion process simple and quick.
NOTE: Not recommended for POE applications. Please use any of our standard RJ45 connectors when installing into POE switches and devices.
Features
- Easy to Use
- This connector has an open end at the front which allows cable wires to be easily fed through. This allows you to arrange the wires easily and visually confirm that the wiring is correct before crimping.
Better Performance - Wire twists can be better maintained since the plug can be seated tightly close to the cable jacket. This ensures optimal cable performance.
Specification
| Contact Type | 3 prong |
| Cable Type | Round, UTP |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Connector | RJ45 Male (8P8C) |
| Performance Rating | Cat5e |
| Conductor Type | Solid or Stranded Cable |
| Conductor Opening Diameter | 1.0mm |
| Wire Gauge Accepted | 24AWG to 26AWG (With a Conductor Insulation < 1.0mm) |
|
Environmental
|
|
|---|---|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 50 |
| Product Weight | 0.16 lbs [0.07 kg] |
|
Contents
|
|
| Included in Package | 1 – Pack of 50 Connectors |
714651682187
RJ45 Cat5e
