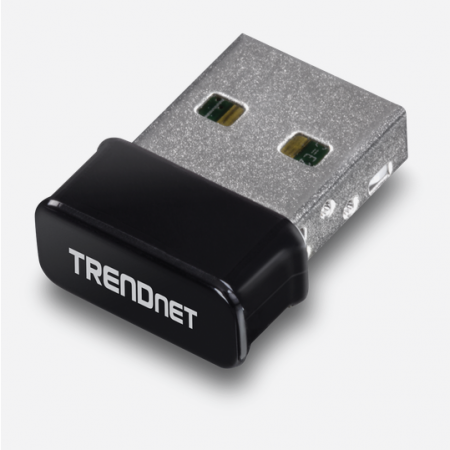

Micro N150 Wireless & Bluetooth USB Adapter TBW-108UB (Version v1.0R)
Return policy
Standards
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- Class I Bluetooth® 4.0 Low Energy (BLE)
Hardware Interface
- USB 2.0
- LED Indicator
Special Features
- Bluetooth® Low Energy (BLE)
- Supports Bluetooth 4.0 Dual Mode: Simultaneous LE and BR/EDR
- Class 1 Bluetooth up to 100m (328 ft.)
- Cisco Compatible eXtensions (CCX) Support
Frequency
- 2.400 – 2.483GHz
Modulation
- 802.11b: DSSS with BPSK, QPSK CCK
- 802.11g: OFDM with BPSK, QPSK, 16/64QAM
- 802.11n: OFDM with BPSK, QPSK, 16/64QAM
Data Rate
- 802.11b: up to 11Mbps
- 802.11g: up to 54Mbps
- 802.11n: up to 150Mbps
- Bluetooth: up to 25Mbps
Antenna
- 2.4GHz: 1 x 1 dBi (max.) internal
Output Power
- 802.11b: 17.5 dBm (max.) @ 11Mbps
- 802.11g: 15.5 dBm (max.) @ 54Mbps
- 802.11n: 13.5 dBm (max.) @ 150Mbps
Receiving Sensitivity
- 802.11b: -81 dBm (typical) @ 11Mbps
- 802.11g: -67 dBm (typical) @ 54Mbps
- 802.11n: -66 dBm (typical) @ 150Mbps
Encryption
- 64/128-bit WEP, WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Channels
- 1 – 11 (FCC), 1 – 13 (ETSI)
Power
- Consumption: 0.61W
WiFi Compatibility
- Windows® 10, 8.1, 8, 7, Vista
Mac® OS 10.12 - 10.9 - Bluetooth Compatibility
Windows® 10, 8.1, 7
Environment
- Operating Temperature
0° – 40° C (32° – 104° F) - Operating Humidity
Max. 90% non-condensing
Dimensions
- 19 x 15 x 7mm (0.8 x 0.6 x 0.3 in.)
Weight
- 2g (0.07 oz.)
Certifications
- CE
- FCC
Warranty
- 3 year
